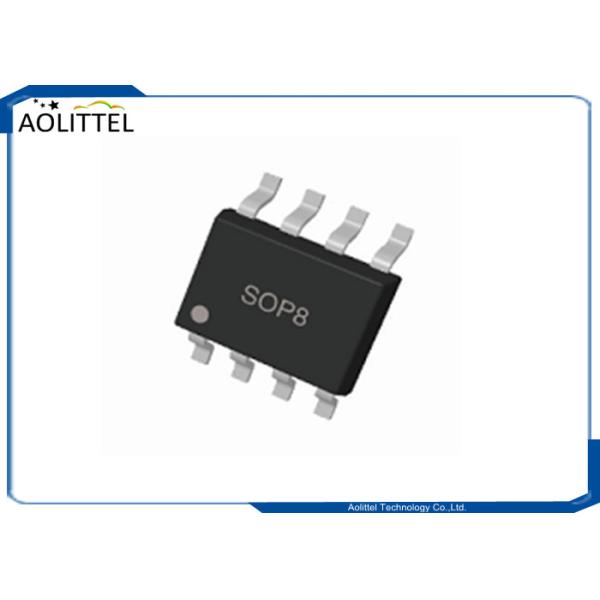

F7110 SOP-8 Package High Power Constant Power Linear LED Driver ODM Solutions For LED Lamps
Typical Application
Suitable for high-power requirements of filament lamps, mining lamps, high-power bulbs, various types of LED lamps
Advantages
Made of 500V high pressure process
External power MOS output current up to 350mA
Input AC voltage 110V/220V
With line voltage compensation
Support analog voltage dimming function
With VS pin is energy control
Support multiple sets of parallel use to increase output power
Support multi-segment series operation mode to improve PFC/THD
With temperature foldback -10% / °C function
Overvoltage (adjustable) protection
Start current protection
Low voltage start function
Package form SOP-8
Application Circuit
Simple F7110 single-stage high-power circuit
F7110+F5112 automatic serial and low voltage start circuit
F Linear Series Chip Selection Table
| NO. | P/N | Function & Features | MOSFET | I(mA) | LED VF value | Package |
| 1 | F5111 | Constant current temperature reentry, can design high P ripple and low P ripple free, can be used in parallel with high power | Internal | 60 | 120/252V | SOT-89 |
| 2 | F5112 | 100 | TP-252 |
| 3 | F7112 | Constant power, temperature foldback, PWM dimming, high and low PFC | 100 | ESOP-8 |
| 4 | F7110 | High-power linear drive, analog DC dimming, temperature foldback, voltage protection, can be used to design full-voltage operation mode | External | 350 | SOP-8 |
| 5 | F7722 | SCR dimming, can design flat panel lights, bulb lamps, filament lamps E14, E27 and other 12W thyristor dimming | Internal | 100 | ESOP-8 |
| 6 | F7522 | 1.VF half-pressure design, input width (160-270VAC) work 2.110/220VAC high P ripple-free design | 100 | 100-150V |
| 7 | F2552 | 1. With F7112 full voltage 12W design 2.VF half voltage rippleless design 3.110/220VAC high P ripple free design | 100 | 120-252 | PDFN-8 |
| 8 | F2722/1 | Constant power type can be used in parallel | 100 | ESOP-8 |
